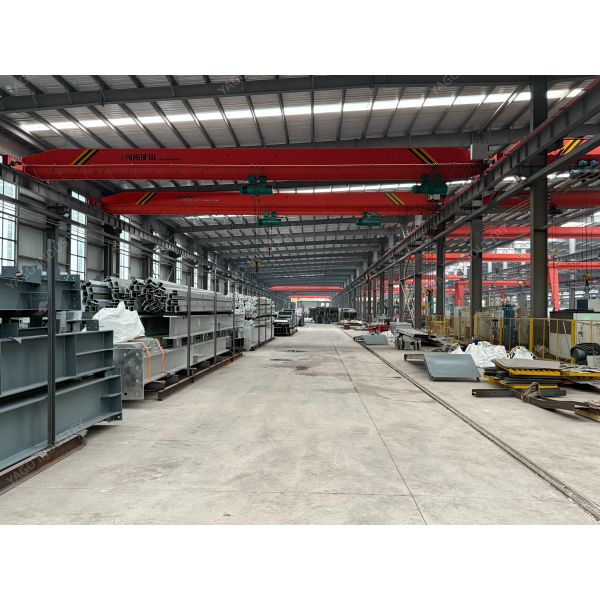

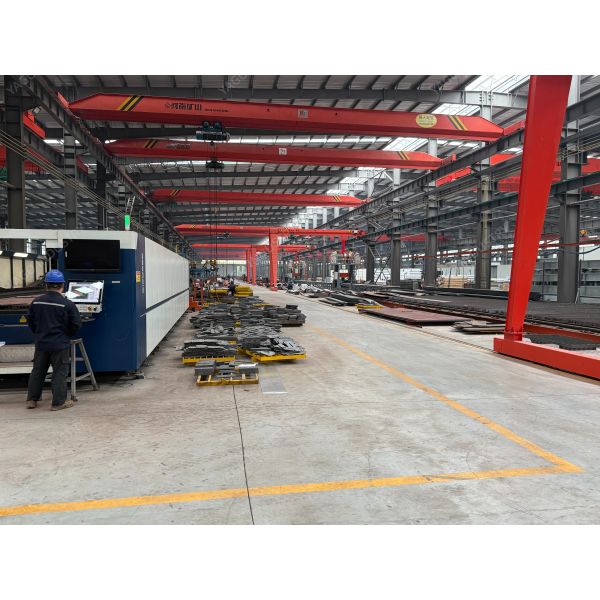

High Strength Long Span Fabricated Steel Structure Workshop With Overhead Crane System
Product Description
The YAGO High Strength Steel Structure Workshop is designed for industrial facilities that require spacious working environments and reliable structural performance. The long-span steel framing system creates wide interior space, allowing efficient installation of production equipment, assembly lines, and maintenance areas. All main structural components are fabricated in the factory to ensure precision and consistent quality.
The workshop can be integrated with an overhead crane system to support lifting and material handling operations inside the building. With durable roof and wall cladding systems, optional insulation, and ventilation solutions, the structure provides a practical working environment for industrial production. The building dimensions, structural specifications, and crane capacity can be engineered to match specific project requirements.
Product Specification
| Item |
Specification |
| Main Steel Frame System |
| Main Structure |
H-Beam, Q355B section steel with paint as per client request |
| Roof purlin |
Q235B, C Section steel, Galvanized 275g |
| Wall purlin |
Q235B, C Section steel, Galvanized 275g |
| Intensive Bolt |
Grade 10.9 intensive bolts |
| Ordinary Bolt |
Galvanized bolts, grade 4.8 |
| Intensive Bolt |
Q235B anchor bolts as per design |
| Bracing System |
| Cross brace |
Φ20, steel Q235, With paint or Hot dip Galvanized as per client request |
| Knee bracing |
L50*4, steel Q235, With paint or Hot dip Galvanized as per client request |
| Column bracing |
Φ20, steel Q235, With paint or Hot dip Galvanized as per client request |
| Tie bar |
Φ89*3, steel Q235, With paint or Hot dip Galvanized as per client request |
| Batter brace |
Φ12round steel bar, steel Q235, With paint or Hot dip Galvanized as per client request |
| Roofing System |
| Roof panel |
Roof with Galvanized Color Steel Sheet Or Insulated Sandwich panel as per client request |
| Edge cover |
Galvanized Color Steel Sheet |
| Fittings & accessories |
Nails,Screws Glue Bolts etc. |
| Gutter |
Stainless Steel Gutter |
| Rainspout pipes |
Φ110 PVC rainspout pipes |
| Unpowered ventilator |
Φ500mm 304SS unpowered ventilator |
| Wall System |
| Exterior wall outside panel |
Wall with Galvanized Color Steel Sheet Or Insulated Sandwich panel as per client request |
| Edge cover |
Galvanized Color Steel Sheet |
| Fittings & accessories |
Nails,Screws Glue Bolts etc. |
Key Advantages
- Long Span Interior Space: Provides wide areas for flexible equipment layout and industrial operations.
- High Strength Steel Structure: Engineered framework delivers reliable stability and load-bearing performance.
- Integrated Crane Support: Structure can be designed to accommodate overhead crane systems for lifting operations.
- Efficient Prefabrication: Factory-fabricated components improve installation speed and construction efficiency.
- Flexible Industrial Use: Suitable for production lines, assembly workshops, and heavy equipment maintenance.
- Custom Engineering Solutions: Building size, crane capacity, and structural design can be tailored to project needs.
Application Market and Target Users
The YAGO long span steel workshop is widely used in industrial sectors that require large indoor working areas combined with overhead lifting capability. It is particularly suitable for fabrication plants, machinery manufacturing facilities, equipment service workshops, and industrial processing plants where efficient material handling is essential.
Typical users include heavy equipment manufacturers, industrial engineering contractors, mining equipment service companies, and production facilities that require durable workshop buildings capable of supporting overhead crane operations and large-scale manufacturing activities.
FAQ
- Q1: Can the workshop be designed for different overhead crane capacities?
A: Yes, the steel structure can be engineered to support various crane capacities depending on operational requirements.
- Q2: What span sizes are available for the workshop building?
A: Long-span designs can be customized according to project needs to create large column-free interior spaces.
- Q3: Is the workshop suitable for heavy industrial production?
A: Yes, the structure is designed to support heavy equipment operations and demanding industrial environments.
- Q4: Can insulation and ventilation systems be included?
A: Yes, insulation panels, roof ventilators, and other building systems can be added to improve working conditions.
- Q5: Can the building be customized for specific production layouts?
A: Yes, YAGO provides customized structural design to match equipment layout, crane systems, and operational workflows.
